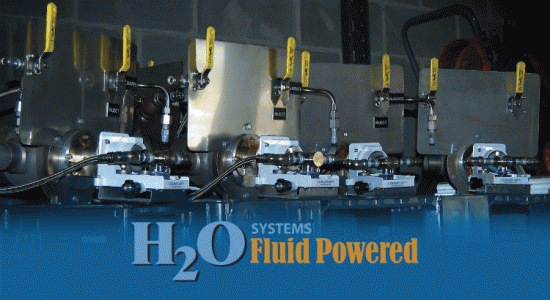

Water Systems - Fluid Power

Advantages of the FP Series

  • Valve less pump, which eliminates clogging and sticking of valves.
  • Pulls suction lift up to 15 feet so that you have no loss of prime
  • Completely passive, only operates and injects when water is flowing
  • No external electrical power required
  • Gret for remote locations as well as flows as small as 7gpm

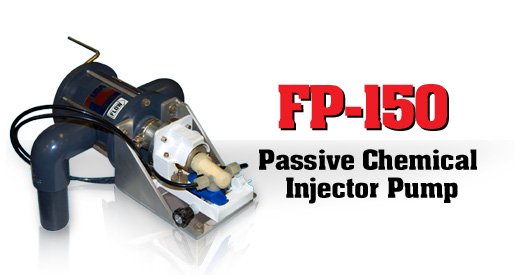

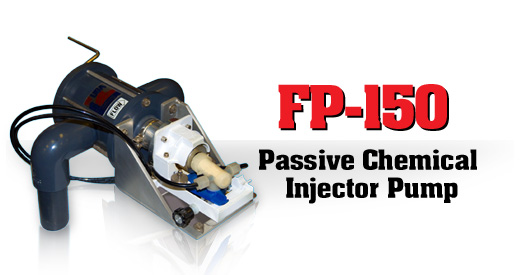

FP150 Chemical Injection Pump

System Description
The Hammonds FP150 offers the ability to inject single or dual chemicals into process streams with flow rates of 10-75gpm. The FP (Fluid Powered) pump is perfect for applications that must inject bleach or other chemicals but have no power available. The FP150 is powered by the water moving through the Hammonds fluid motor resulting in the injection of bleach or other liquid additives in proportion to flow without the requirement of external power. The FP150 is passive, meaning it automatically starts and stops any time flow is present in the system. NO VALVES TO LEAK!

SPECIFICATIONS

  • Flooded suction required
  • Number of additives: 1 Standard, Up to 2 Optional
  • 1-1/2” Sch 80 PVC pipe connections standard
  • (other connections available, consult factory for
  • Injection ratios: 0-1000 PPM depending upon application
  • 10-40 GPM continuous operation
  • 10-75 GPM intermittent operation with optional gear
  • Product temperature range:- -40 -- +250 F
  • Maximum product line pressure: 50 PSI (consult factory for line pressure greater than 50 PSI)

MATERIALS OF CONSTRUCTION:

  • Fluid motor: PVC
  • Fluid motor shaft: 300 series stainless steel
  • Metering pump: All wetted parts ceramic and HDPE plastic (other materials available - consult factory)
  • Mechanical Seal: Carbon on ceramic
  • Product viscosities: To 10,000 SSU
  • Chemicals: bleach and other water treatment chemicals
  • Duty cycle: Intermittent

FP 600 Chemical Injection Pump

System Description
The Hammonds FP600 offers the ability to inject single or dual chemicals into process streams with flow rates of 10 – 280 gpm. The FP (Fluid Powered) pump is perfect for applications that must inject bleach or other chemicals but have no power available. The FP600 is powered by the water moving through the Hammonds fluid motor resulting in the injection of bleach or other liquid additives in proportion to flow without the requirement of external power. The FP600 is passive, meaning it automatically starts and stops any time flow is present in the system. NO VALVES TO LEAK!

SPECIFICATIONS

  • Flooded suction prefered
  • Number of additives: 1 Standard, Up to 2 Optional
  • 3” Sch 80 PVC pipe connections standard (other connections available, consult factory for details)
  • Injection ratios: 0 - 4000 PPM by volume depending upon application
  • 10 -200 GPM continuous operation
  • 10 – 280 GPM intermittent operation with optional gear reducer
  • Product temperature range: 32 - 140 F
  • Maximum product line pressure: 50 PSI (consult factory for line pressure greater than 50 PSI)
  • Product viscosities: To 10,000 SSU
  • Chemicals: bleach and other water treatment chemicals
  • Duty cycle: Intermittent

MATERIALS OF CONSTRUCTION:

  • Fluid motor: PVC
  • Fluid motor shaft: 300 series stainless steel
  • Metering pump: All wetted parts ceramic and HDPE plastic (other materials available - consult factory)
  • Mechanical Seal: Carbon on ceramic
  • Product viscosities: To 10,000 SSU
  • Chemicals: bleach and other water treatment chemicals
  • Duty cycle: Intermittent
