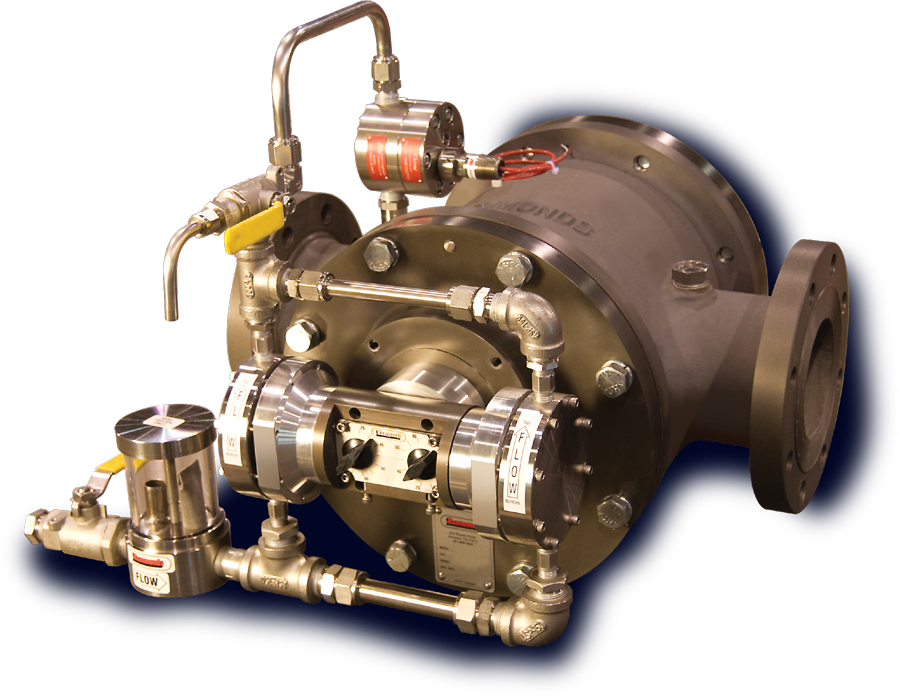

Model 800

The 800 offers precision injection of additives meeting the requirements of delivery terminals, high-volume delivery vehicles and truck loading racks. Self contained and requires no product meters or pulsars.

• Simple, economical installation
• Guaranteed precision blending
• No power or meter required
• 4” 150# ANSI connections
• Passive, automatic operation

• Flooded suction required
• Number of Additives: 1 Standard, up to 4 optional
• 4" 150# connection standard (other connections available, consult factory for details)
• Injection Ratios: 0-4000 ppm depending upon application
• 75-700 gpm continuous operation
• Product Temperature Range: -40°F to +250°F (-40°C to +121°C)
• Maximum product line pressure: 150 psi. Higher pressures available with upgraded flanges installed
• Product Viscocities: up to 10,000 ssu
• Fuels, Oils, Additives and Liquid Gases
• Duty Cycle: Intermittent

• Aluminum casting; carbon steel fabrication optional
• Metering Pump: All wetted parts 300 series stainless steel
• Elastomers: Aflas, Viton, and Teflon; other elastomers available upon request
• Mechanical Seal: Carbon on Ceramic, optional Tungsten on Carbon
• Upgrade to Hammonds "Smart" System
