The 6T Series system offers single or multiple additive injection at flow rates typically found in fuel delivery terminals and transport trailer fill stands. The unique turbine-powered fluid motor responds precisely to changes in product volume even at lower product flow rates. Like all Hammonds injection systems, the 6T dispenses precise quantities of additive at a continuous rate, eliminating the “slugging” effect typically found in meter-pulsed injectors.

  • Unique Fluid-powered Turbine injection
  • Product meters or pulsars not required
  • Even and accurate blend
  • Flooded suction required
  • Number of Additives: 1 Standard; up to 4 optional
  • 6" 150# connection standard (other connections available, consult factory for details)
  • Injection Ratios: 0-4000 ppm depending upon application
  • 400 - 1200 GPM continuous operation
  • n/a intermittent operation
  • Product Temperature Range: -40°F to +250°F (-40°C to +121°C)
  • Maximum product line pressure: 150 psi. Higher pressures available with upgraded flanges installed
  • Product Viscocities: up to 10,000 ssu
  • Fuels, Oils, Additives and Liquid Gases
  • Duty Cycle: Intermittent
  • Carbon Steel Construction
  • Metering Pump: All wetted parts 300 series stainless steel
  • Elastomers: Aflas, Viton, and Teflon; other elastomers available upon request
  • Mechanical Seal: Carbon on Ceramic, optional Tungsten on Carbon
  • Upgrade to Hammonds "Smart" System

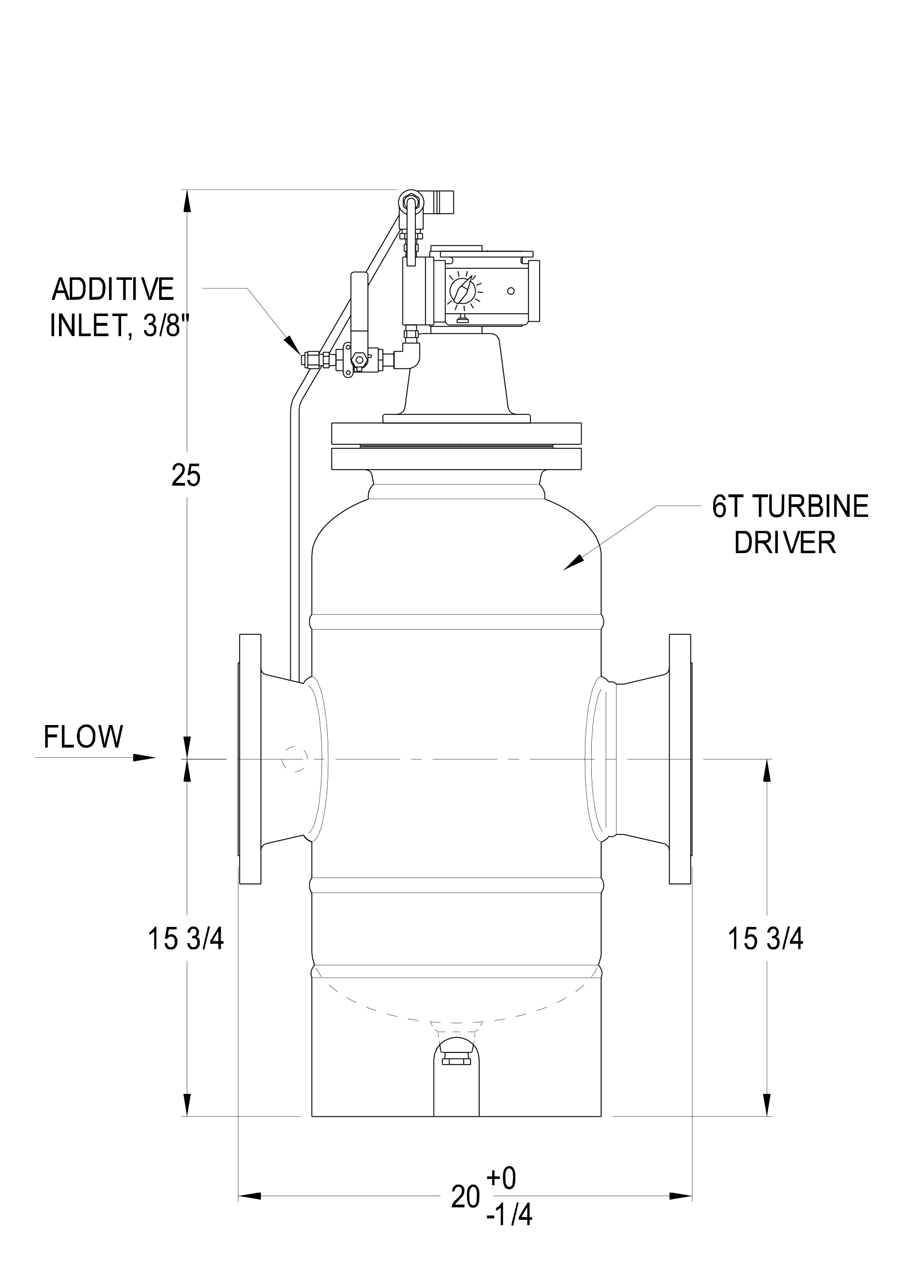

(Drawing Above Is Modifiable Per Your Installation)
