SPECIFICATIONS
  • Flooded suction required
  • Number of Additives: 1 Standard, up to 4 optional
  • 10" 150# connection standard (other connections available, consult factory for details)
  • Injection Ratios: 0-4000 ppm depending upon application
  • 600-4000 gpm continuous operation
  • Product Temperature Range: -40°F to +250°F (-40°C to +121°C)
  • Maximum product line pressure: 150 psi. Higher pressures available with upgraded flanges installed
  • Product Viscocities: up to 10,000 ssu
  • Fuels, Oils, Additives and Liquid Gases
  • Duty Cycle: Intermittent
CONSTRUCTION MATERIALS
  • Caron Steel fabrication
  • Metering Pump: All wetted parts 300 series stainless steel
  • Elastomers: Aflas, Viton, and Teflon; other elastomers available upon request
  • Mechanical Seal: Carbon on Ceramic, optional Tungsten on Carbon
  • Upgrade to Hammonds "Smart" System

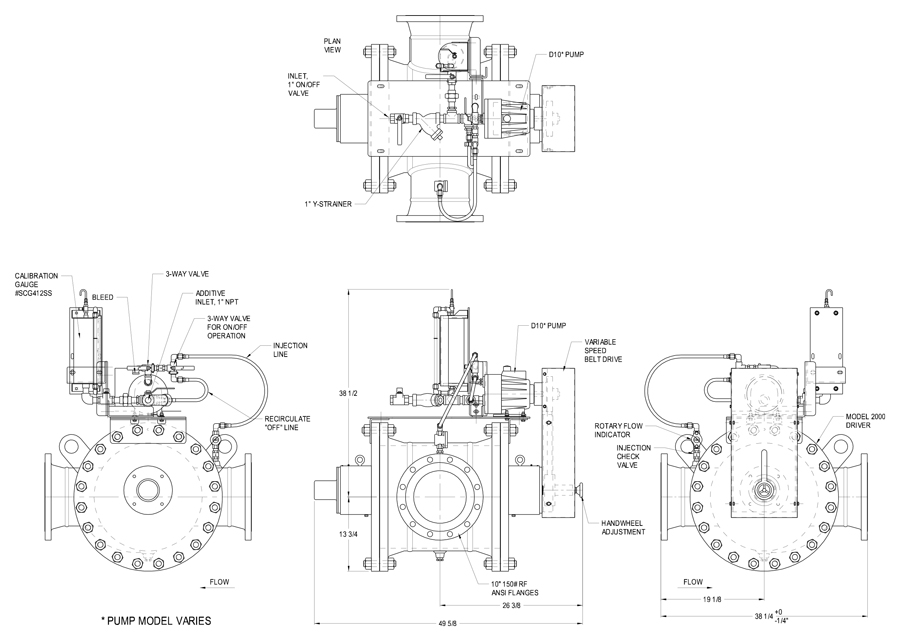

(Drawing Above Is Modifiable Per Your Installation)
