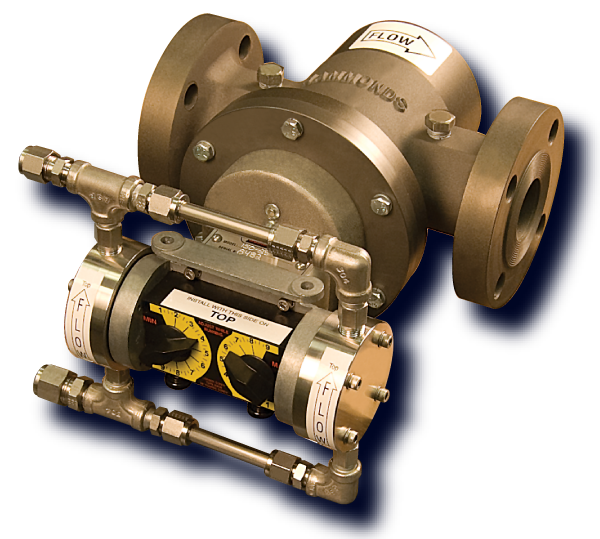

The Model 150 offers the ability to inject single or dual additives at smaller flow rates (7 to 75 gallons per minute). Ideal applications include self-fueling cabinets, home heating oil delivery trucks, dye injection and low-flow aviation fuel delivery trucks.

  • Easily adapted for water treatment
  • Installs easily in small spaces
  • No power or meter required
  • Even and accurate blend
  • 1½” 150# ANSA connections
  • Flooded suction required
  • Number of Additives: 1 Standard, 2 optional
  • 1-1/2" 150# connection standard (other connections available, consult factory for details)
  • Injection Ratios: 0-4000 ppm depending upon application
  • 7-30 gpm; 7-75 gpm with optional gear box continuous operation
  • Product Temperature Range: -40°F to +250°F (-40°C to +121°C)
  • Maximum product line pressure: 150 psi. Higher pressures available with upgraded flanges installed
  • Product Viscocities: up to 10,000 ssu
  • Fuels, Oils, Additives and Liquid Gases
  • Duty Cycle: Intermittent
  • Aluminum casting; carbon steel fabrication optional
  • Metering Pump: All wetted parts 300 series stainless steel
  • Elastomers: Aflas, Viton, and Teflon; other elastomers available upon request
  • Mechanical Seal: Carbon on Ceramic, optional Tungsten on Carbon
  • Upgrade to Hammonds "Smart" System

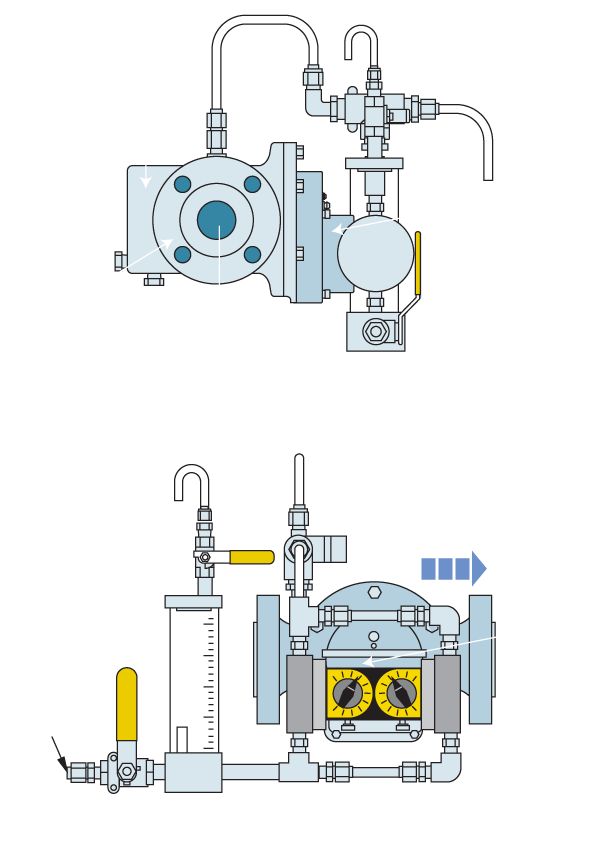

(Drawing Above Is Modifiable Per Your Installation)
