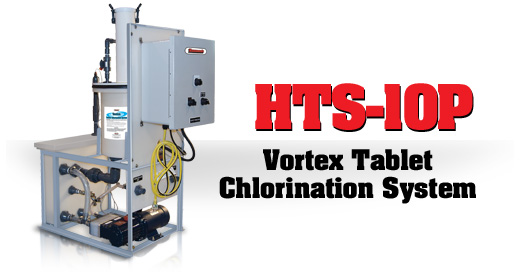

Tablet Chlorination Model: HTS-10P

Hammonds brings all the advantages of the high energy vortex feeder to this small application disinfection system. Designed specifically for lower volume rural wells, mobile home parks, and individual commercial wells, this compact system mrrors the larger HTS80 system in features and versatility. The heart of the system is Hammonds’ exclusive high energy vortex, with no moving parts, that produces a low strength solution of calcium hypochlorite. Infinitely variable solution strength and solution delivery makes this system capable of treating the smallest of wells or industrial disinfection applications. One system, out of the box, for any flow or pressure up to 150 GPM or pressure to 150 PSI.


  • Performance: Typical 10-150 GPM wells at dosing levels up to 2 PPM
  • Chlorine Delivery: 0-.15 pounds per hour
  • Water supply requirement: 4 GPM @ 30-150 PSI
  • Discharge pressure: 0-150 PSI
  • Tablet capacity: 10 lbs.
  • Power: 110 VAC @ 3 amps
  • Dimensions: 21 9/16” W x 2’ - 9 9/16” L x 4’ - 2 1/16” H
  • Weight: 80 lbs.
  • Stainless steel leveling legs
  • Variable speed pumps
  • All system components NSF® listed
  • SCADA ready
  • Tablet Recommendations: NSF® Std. 60 listed solid calcium hypochlorite only
  • Chlorine delivery: 0-.15 lbs. per hour Delivery will vary depending on size and manufacturer of calcium hypochlorite tablet
  • Solution metering pump: Type: balanced diahragm, positive displacement, variable speed–Performance: 0-.5 GPM
  • Chlorine delivery controls:
    • Manual pump speed with variable control
    • Automatic flow pacing: Automatically adjusts pump speed when supplied with 4-20mA signal from process flow meter or controller (PID)


  • 6 gallon solution tank
  • Balanced diaphragm positive displacement pump
  • Manual pump controls
  • Hot dip galvanized frame
  • High pressure relief valve
  • Ten pound tablet storage


  • Frame: 3/4” x 3/4” hot dip galvanized steel
  • Mixing reservoir: NSF® listed 5 gallon high density polyethylene
  • Tablet feeder: NSF® listed PVC
  • Solution tank: NSF® listed PVC
  • Piping: Schedule 80 PVC (all components NSF® listed)
  • Inlet water supply: 1/2” FM NPT schedule 80 PVC
  • Relief valve: Schedule 80 PVC
  • Supply solenoid valve: Noryl
  • Pump relief valve: PVC
  • Pump:
    • Fluid end: polypropylene -Valves: 316 S.S.
    • Elastomers: Viton®
    • Diaphragm: Viton®
    • Lube oil: FDA approved, food grade
